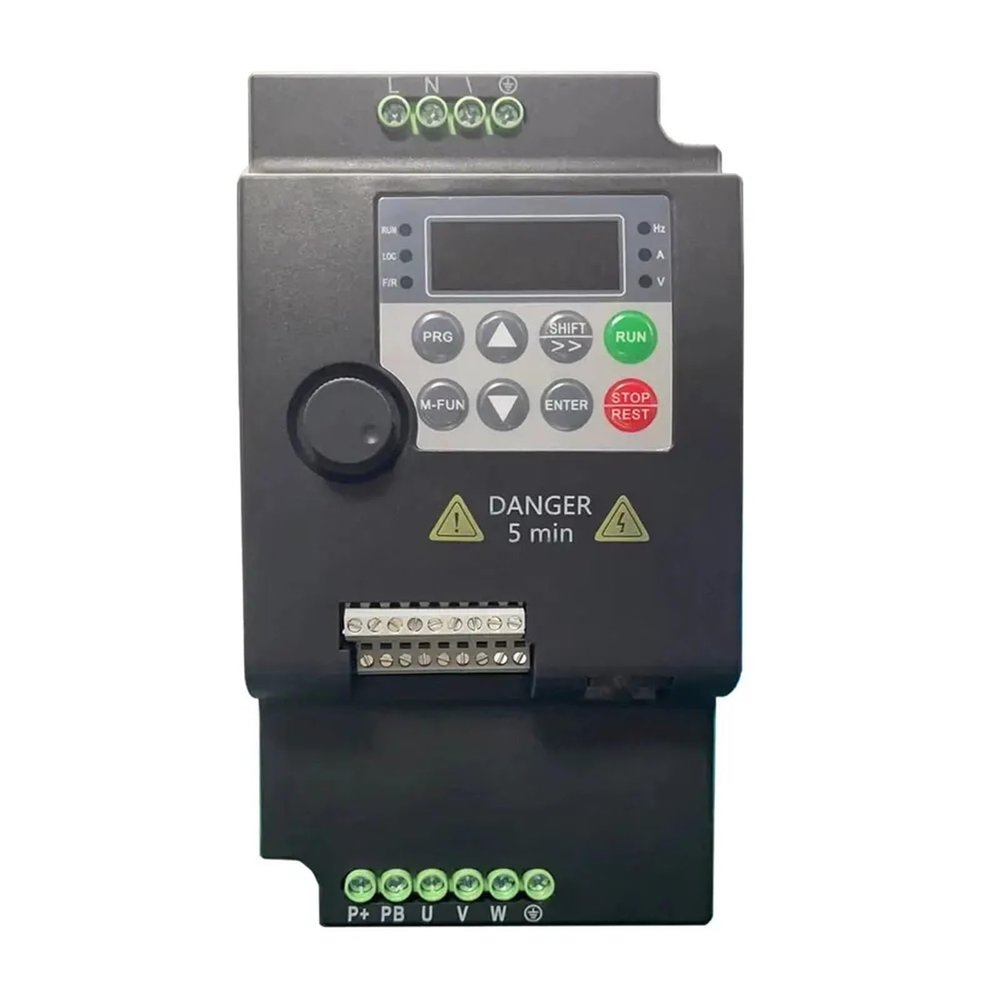

220V 380V Vector Variable Frequency Drive Converter Variator Inverter 0.75/1.5/2.2/4/5.5KW Motor Speed Controller 1Pcs(2.2KW 1PH-3PH 220V)

Description

• Isolation Transformers
• See the second picture of the variant for detailed parameters
• See the second picture of the variant for detailed parameters

Isolation Transformers
Sizes:
For 0.75kw-2.2kw:
For 3.7KW/5.5KW:
Specifications:
Rated power: 0.75kw/1.5kw/2.2kw (for 220V type)
Rated output current: 4A(for 0.75kw)/7A(for 1.5kw)/9.6A(for 2.2kw)
Input voltage: 1 phase 220v
Output voltage: 3 phase 220v
Installation dimension: 130x73mm
External dimension: 145x110x85mm
Mounting hole dimension: 61x81mm
Net Weight: 1kg
Rated power: 3.7kw
Rated output current: 16A
Input voltage: 1 phase 220v
Output voltage: 3 phase 220v
Installation dimension: 170x85mm
External dimension: 180x120x95mm
Mounting hole dimension: 61x81mm
Net Weight: 1.4kg
Rated power: 0.75kw/1.5kw/2.2kw (for 380V type)
Rated output current: 2.1A(for 0.75kw)/3.8A(for 1.5kw)/5.1A(for 2.2kw)
Input voltage: 3 phase 380v
Output voltage: 3 phase 380v
Installation dimension: 130x73mm
External dimension: 145x110x85mm
Mounting hole dimension: 61x81mm
Net Weight: 1kg
Rated power: 3.7kw/5.5kw (for 380V type)
Rated output current: 9A(for 3.7kw)/13A(for 5.5kw)
Input voltage: 3 phase 380v
Output voltage: 3 phase 380v
Installation dimension: 170x85mm
External dimension: 180x120x95mm
Mounting hole dimension: 61x81mm
Net Weight: 1.4kgs
Output Current : 2.1-16A
Output Frequency : 0-500Hz
Output Power : 0.75KW-5.5KW
Type : AC/AC Inverters
Weight : 1-1.5KGS
