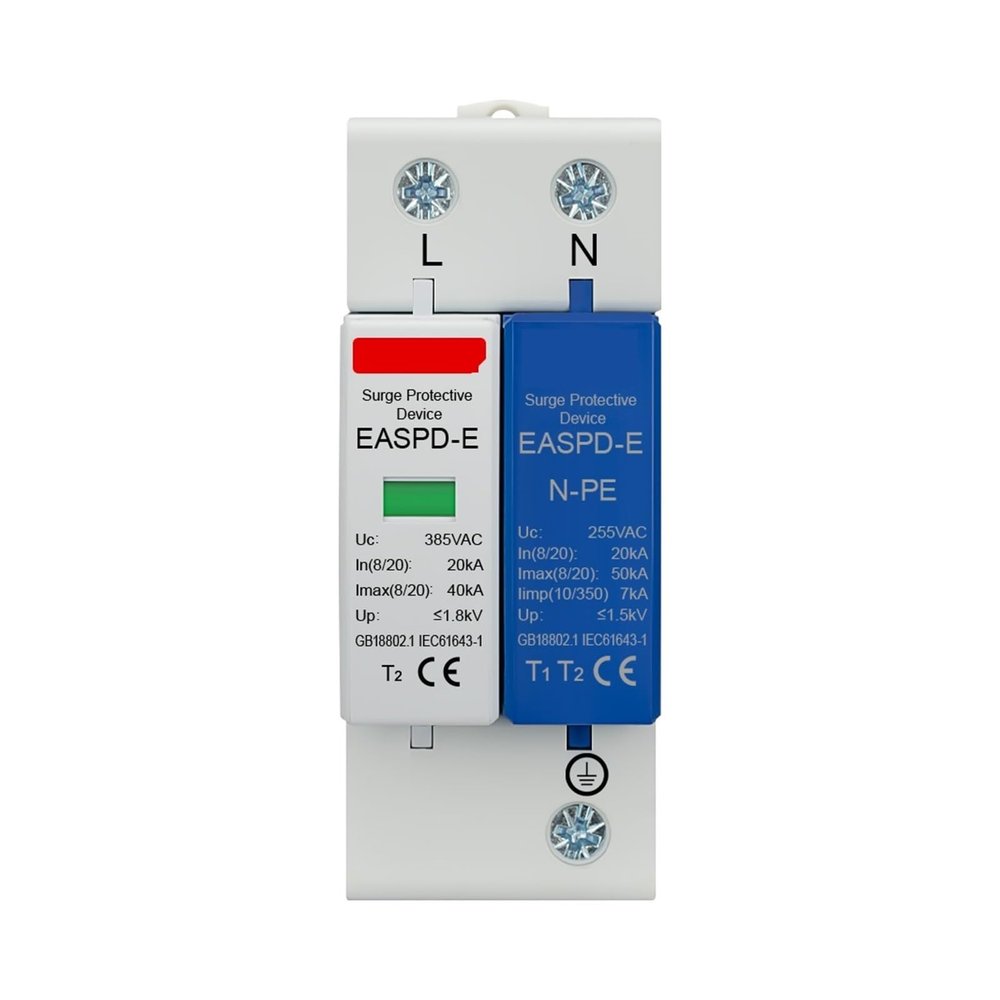

2P 4P AC Surge Protector 1P+N-PE 20KA 40AK 50KA T1 T2 275V 385V Surge Protector Low Voltage Surge Arrester EASPD-E(4P,385V)

Description

• Surge Protectors
• 2P 4P AC surge protector 1P+N-PE 20KA 40AK 50KA T1 T2 275V 385V surge protector low voltage surge arrester EASPD-E

Surge Protectors
2P 4P AC surge protector 1P+N-PE 20KA 40AK 50KA T1 T2 275V 385V surge protector low voltage surge arrester EASPD-E
Applications: Protecting systems and loaded equipment from lightning strikes and transient overvoltages;
Standard: IEC/EN 61643-1
Number of poles: 2 poles, 4 poles
Rated values: Single-phase power distribution and control system, AC 50/60Hz, 230V;
Short-circuit current: up to 10kA (8/20s);
Applications: Protecting systems and loaded equipment from lightning strikes and transient overvoltages;
Technical parameters:
Maximum continuous operating voltage (Uc):
Approximately 275 volts AC power
Approximately 385 volts AC
Nominal discharge current (8/20 seconds) (inches):
20KA
20KA
Maximum discharge current (8/20 seconds) (Imax.):
40 kJ
40 kJ
Voltage protection level (top):
1.8 kV
1.8 kV
Response time:
<;25ns
Leakage current:
20A
Work environment:
Temperature -40C to +80C;
Less than 95%;
The situation has worsened:
Green (normal), Red (malfunction)
Protection Mode:
L+N-PE
Rated discharge current: 20kA
Maximum discharge current: 40kA
Input voltage: 275V/385V
