4P Surge Protector Arrester Anti-Thunder Protection Circuit Breaker Household 385VAC Circuit Breaker (Size : 150KA)

Description

• Circuit Breakers

Circuit Breakers

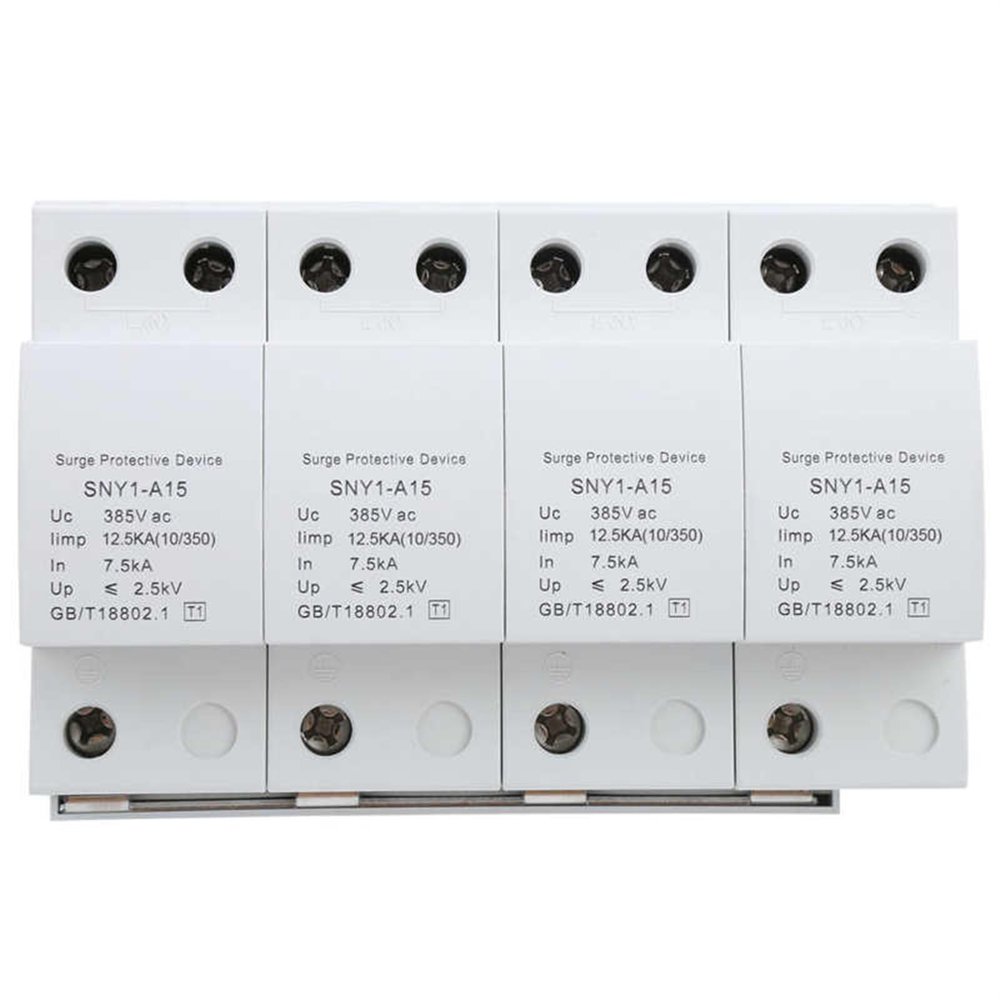

4P Surge Protector Arrester AntiThunder Protection Circuit Breaker Household 385VAC
Specification:
Item Type: Surge Protector
Material: PBT, silver alloy
Purpose: Photovoltaic power distribution, power distribution cabinet, computer room monitoring, surge protection, thunder protection
Rated Voltage: 385VAC
Voltage Protection Level: 2.5kV
<;25ns
Test Level: II level
Protection Level: IP20
Design Life: 20 years
Working Environment: -40~+85
Safety Standards: Products with MA thunder protection testing CE EU certification, etc.
On-Line Specifications:
Phase Line and Neutral Line: 2.5~35
Ground Wire: 4.0~35
Signal Line: 1.5
Installation Method: DIN rail installation
Product Structure: Plug-In
Connection Method: Tunnel crimping
Installation Instructions: The surge protector is directly connected to any type of switch in the family, or under the main switch of leakage protection, and the wires are pulled out in parallel and grounded.
Impulse Current (Iimp) Rated Current (In)
12.5KA 7.5KA
15KA 7.5KA
25KA 12.5KA
50KA 25KA
80KA 40KA
100KA 50KA
150KA 100KA
200KA 100KA
Package List:
1 x Surge Protector Note:
Reminder: The circuit is dangerous, please install it by a professional electrician
