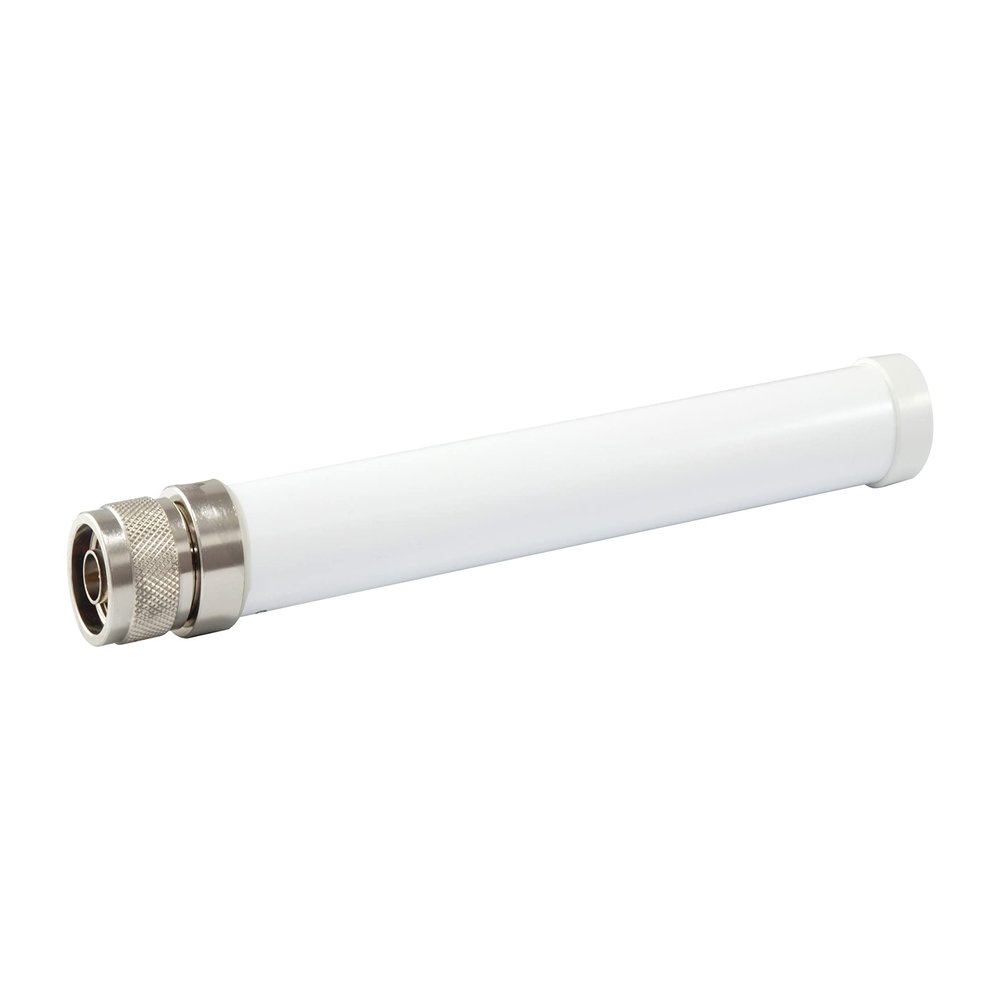

LevelOne OAN-4058 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor

Description

• 5dBi/8dBi Omni-directional Operations
• For IEEE 802.11a/b/g/n/ac wireless applications in the 2.4/5 GHz frequency range
• Low air resistance
• -30 C to 60 C operating temperature range

The LevelOne OAN-4058 is an omnidirectional antenna that operates at a frequency of 2.4 GHz and 5 GHz and can be mounted both indoors and outdoors. The gain value of the antenna of 2.4 GHz / 5 GHz is 5 dBi / 8 dBi. When the weatherproof housing is mounted outdoors, it can withstand temperatures from minus 30C to 60C as well as rain, snow, dust and other harsh conditions. LevelOne OAN-4058 Antenna gain level (max): 8 dBi, Frequency band: 2.4 - 5 GHz, Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 22 mm, Depth: 203 mm, Height: 22 mm. Package type: Blister. Master (outer) case width: 48 cm, Master (outer) case length: 56 cm, Master (outer) case height: 29 cm Weight & dimensions: Width: 22 mm -Depth: 203 mm -Height: 22 mm -Weight: 860 g -Package width: 70 mm -Package depth: 60 mm -Package height: 265 mm Package weight: 192 Operating operating conditions in the operating conditions Operating temperature range: -30 - 60 C Operating humidity: 0 - 95% Box contents: -Quantity: 1 -Package type: Blister Power: -Antenna gain level (max): 8 dBi -Frequency band: 2.4 - 5 GHz -Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.802.02.11ac. 11b,IE,IEEE 802.11g,IEEE 802.11n -Gain: 5 / 8 dBi -Antenna gain (2.4 GHz): 5 dBi -Antenna gain (5 GHz): 8 dBi -Impedance: 50 Ohm -Horizontal beam width (2.4 GHz): 360 Vertikale Beam width (2.4 GHz): 51.7 horizontal beam width (5 GHz): 360 vertical beam width (5 GHz): 27.7 functions: antenna type: omnidirectional antenna connector type: N-type connector gender: female polarisation: vertical polarisation -voltage position wave (VSWR$$$$): 2 Country of origin: Taiwan Product colour: White
