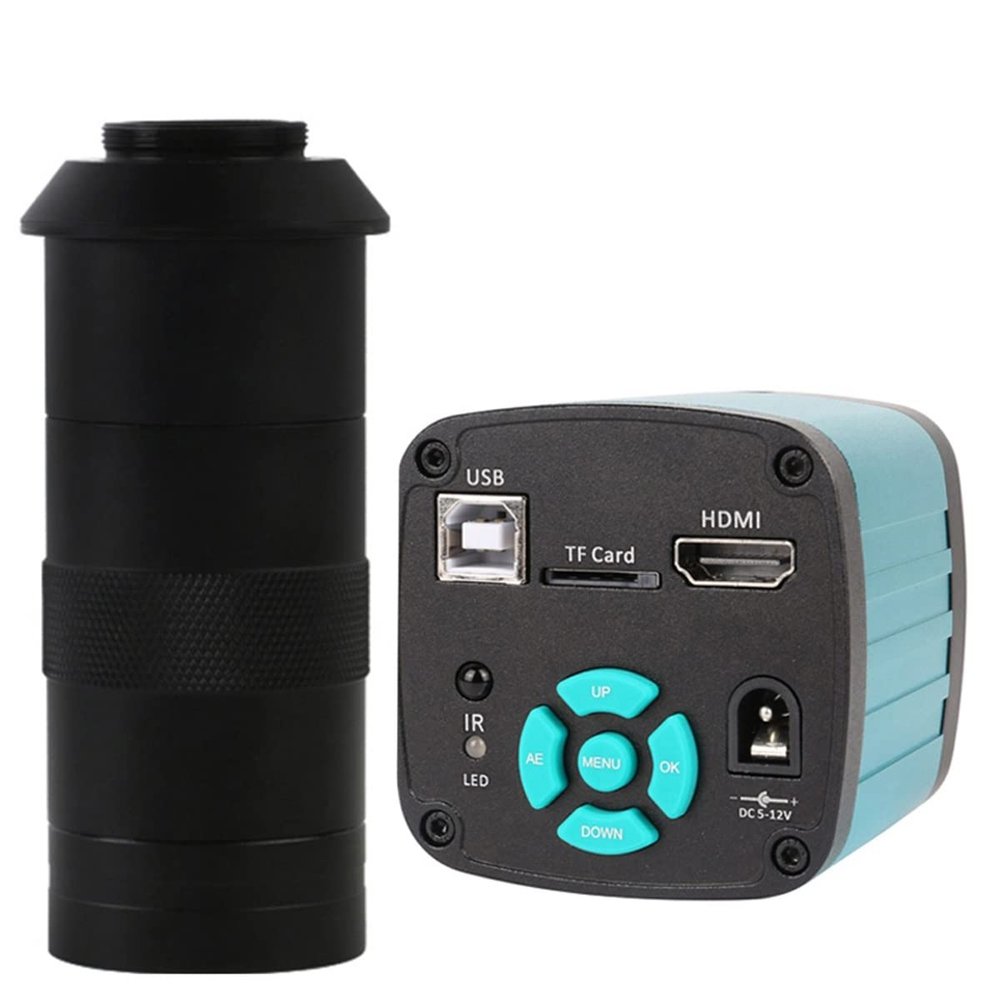

Microscope Kit Microscope Camera 4K 48MP HDMI Industrial USB Digital Video Microscope Camera Monocular 130X Zoom C-Mount Lens For PCB Phone Repair Soldering Microscope Lens Adapters(Color:48MP With Le

Description

• Camera Model:13MP/38MP/48MP For your optional; Camera Fuction:VGA HDMI USB For optional.
• Sensor: 1/3 inch 13MP/38MP/48MP For Optuional; There are multiple options, According to your choice.
• 130X zoom Lens Magnification Power by 8X~130X; Lens Size: 115mm(L) * 40mm(DIA); 56 LED Adjustable Compact Microscope Ring Light: Provides intense and focused shadow-free illumination.
• Perfect microscope accessories, exquisite workmanship, can be widely used in microscope. With good durability and stability.
• You can reach us anytime for any query and I'll available 24x7 to assist you, have a good day.

Camera A:
Camera specifications:
The sensor : 1/2.33 inch 48 megapixel CMOS sensor
Pixel size : 1.335m 1.335m
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input v : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

Camera B:
Specifications
Sensor: 1/2.8 inch I_MX335 CMOS sensor
Pixel size: 48MP
USB interface: USB2.0 X2 (plug U disk, connect mouse)
HDMI output: 1920*1080 60 frames
Lens interface: C interface
Exposure: One-button exposure/automatic exposure
White balance: one-key white balance/auto white balance
Storage: Support U disk storage, mouse operation
Import PNG: Support U disk to import PNG files to the camera
Input v: DC 5V-12V
Cross line: Support center cross line, a total of 8 (color, position adjustable)
Line drawing: 12 kinds of measurement functions such as line drawing, straight line and circle are supported.
Boot screen: Support custom boot screen
Calibration: support line calibration, circle calibration
Mirroring: support horizontal/upside down
Menu language: English/Chinese/Traditional
Net weight: 150g
Gross weight: 350 grams
Product size: 70*70*38mm
Packing size: 145*130*70mm

Camera C:
Feature:
The sensor: imx291
Overall dimension: 20*70*70mm
Video Interface:HDMI
USB2.0: 1920*1080 @ 30FPS 1280*720 @ 30FPS 640*480 @ 30FPS
Lens:CS
Working v:12V
Working current:120mA
Stroomverbruik: MAX 0
