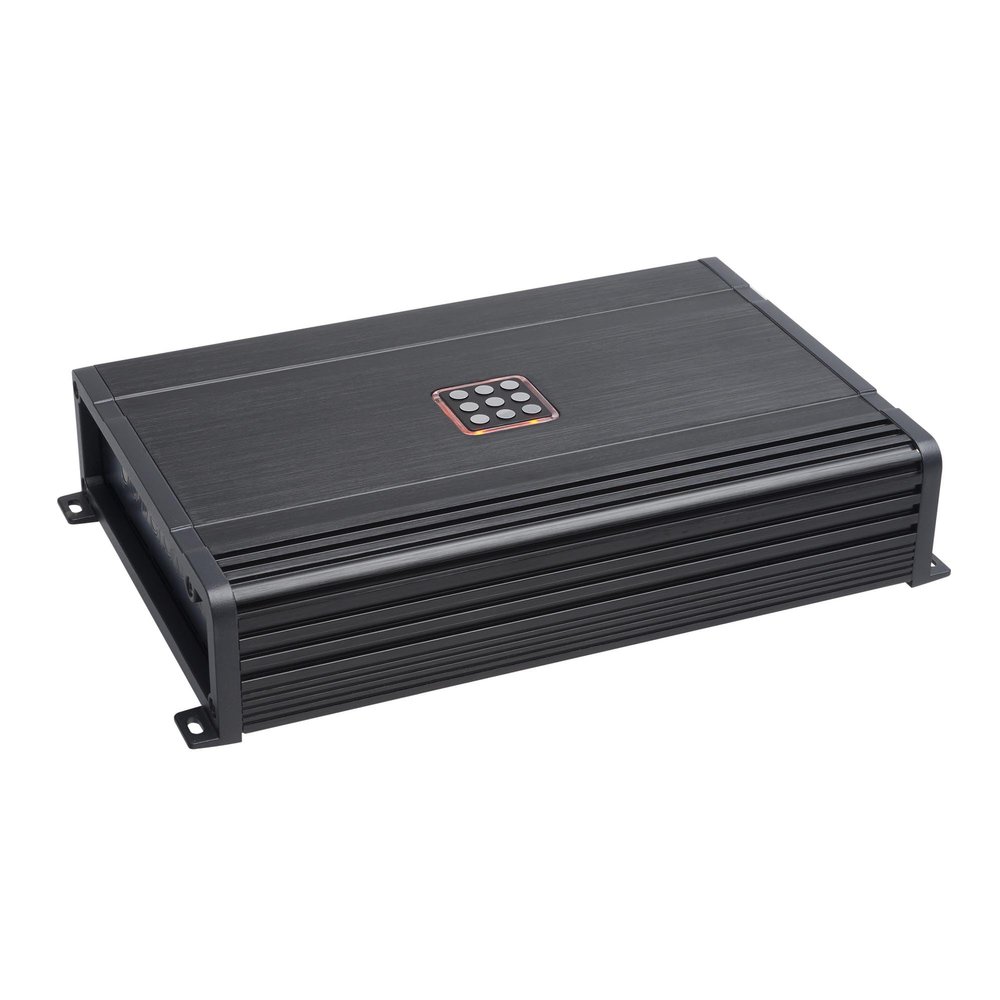

PowerBass PBX-800.1D - Mono Class D 600W x 1 (2 ohm), 800W x 1 (1 ohm) Amplifier

Description

• 800 Watt High Efficiency Class D Design
• Front Load Terminal Design
• 1-OHM Stable Mono Block Amplifier
• Ultra Low Current Draw
• Double Sided Copper Plated PCB

800 Watt High Efficiency Class D Design
Front Load Terminal Design
1-OHM Stable Mono Block Amplifier
Ultra Low Current Draw
Double Sided Copper Plated PCB
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
Variable Subsonic Filter
High Current Voltage Ripple Rejection Circuitry
Balanced RCA Inputs
Selectable Auto Turn On Circuit
Remote Soft Delay Turn On/Off Circuit
40 Click Variable Low Pass Electronic Crossover
Variable Gain Control
Wired Secondary Remote Gain Control Included
Calibrated Visual Clipping Indicator
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output

Specifications
Peak Power: 1600 watts
Subwoofer Frequency Range: 10Hz - 300 Hz
Dimensions (in Inches): 10.25x7x2.25
Depth: 10.25
Channels (mono): 1
4-ohm Power: 400 watts x 1
4-ohm Mono Power: 400 watts x 1
2-ohm Power: 600 watts x 1
1-ohm Mono Power: 800 watts x 1
Nominal Impedance: 1
Height: 2.25
Width: 7
Subwoofer EQ Frequency: 40 Hz- 100 Hz
Low-Pass Crossover Freq: 35 Hz - 250 Hz
High-Pass Crossover Freq: N/A
Crossover Slope: 24 dB
Input Sensitivity: 0.25 V - 7 V
S/N Ratio: >95 dB
Strapped Output Power @ 2ohms: 1600 watts x 1
Output Power (14.4 V) @ 4 ohm: 400 watts x 1
Output Power (14.4 V) @ 2 ohm: 600 watts x 1
Output Power (14.4 V) @ 1 ohm: 800 watts x 1
Frequency Response: 10 Hz - 300 Hz
