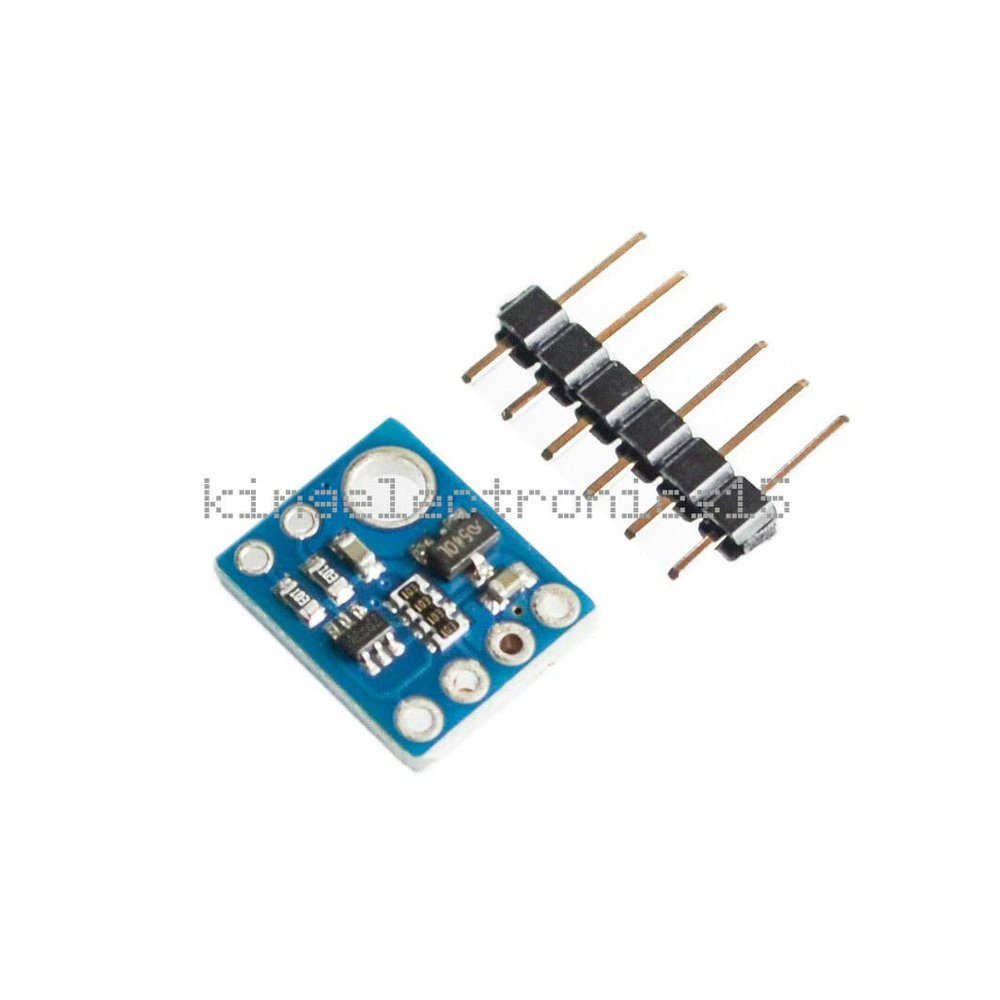

Sensors Red/Blue VL6180X Optical Time-of-Flight Distance Sensor Ranging Finder Sensor - (Color:Blue)

Description

Product Description:
Red/Blue VL6180X Optical Time-of-Flight Distance Sensor Ranging Finder SensorProduct Image:
Product Description:
Description:(Pls check the description very carefully before purchase)Purple1. IR emitter:850nm2. Distance:0-50cm3. I2C address:0x29 (7-bit)4. Ambient light sensor:0.038 to 50klux(2) 16-bit output(3)Package Included:1 x VL6180 High Accuracy Range Finder Optical Ranging Sensor for ArduinoBlue2.8V Regulator - Provides the required 2.8V for the sensorI2C Level Shifter - Provides logic level conversion from 2.8V to VCC3-in-1 ModuleIR EmitterRange SensorAmbient Light SensorMeasures absolute range up to 10cmGesture RecognitionI2C InterfaceTwo Programmable GPIOSharp Sensor Board LayoutPinout description:VIN This is the main 2.7 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the IC lines high to this level.GND The ground (0 V) connection for your power supply. Your IC control source must also share a common ground with this board.SDA/SDI/SDO Level-shifted IC data line: HIGH is VIN, LOW is 0 VSCL/SPC Level-shifted IC clock line: HIGH is VIN, LOW is 0 VGPIO0/CE This pin is configured as a chip enable input on power-up of the VL6180X; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. After the VL6180X powers up, this pin can be reconfigured as a programmable interrupt output (VDD logic level). This input/output is not level-shifted.GPIO1 Programmable interrupt output (VDD logic level). The VL6180X also drives this pin low when it is in hardware standby. This output is not level-shifted.Package Included:
1 X VL6180X Module1 X 6P Pin Header
