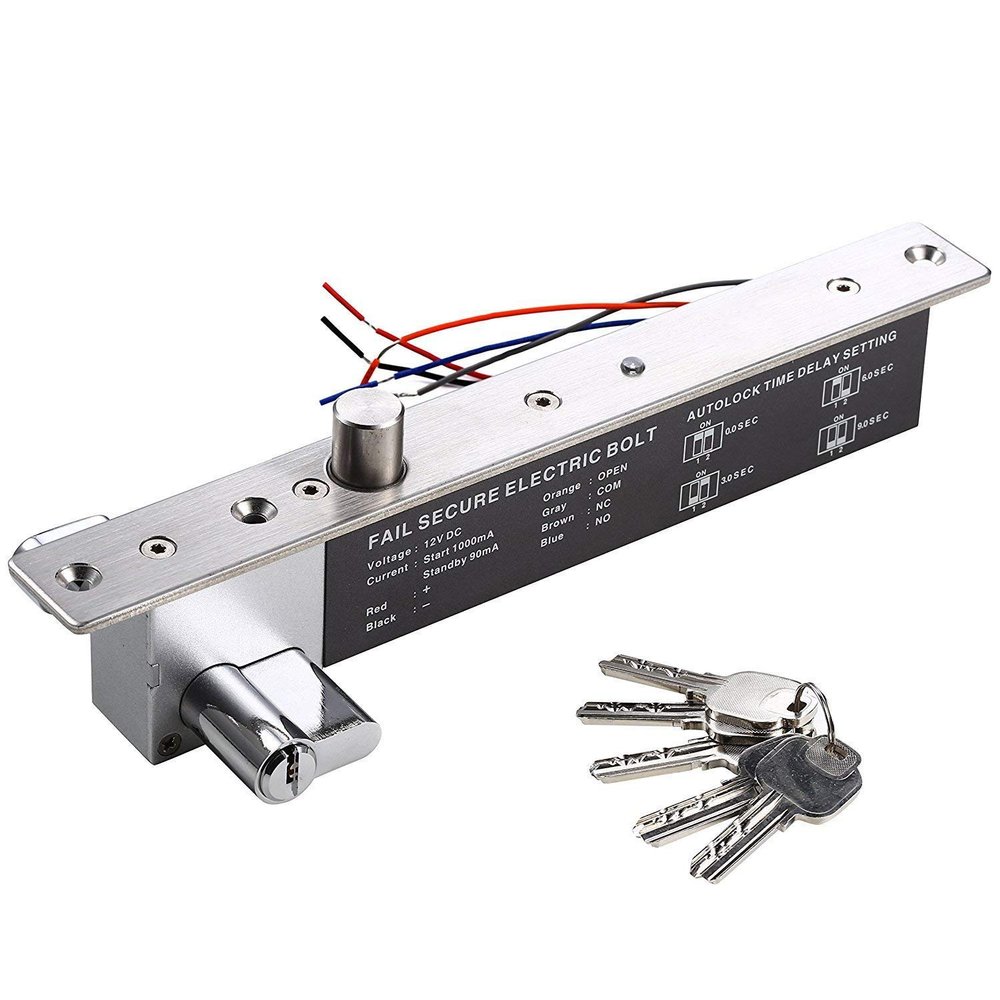

UHPPOTE 12VDC Electric Drop Bolt Lock Key Open Fail Secure W/Cylinder Time Delay

Description

• Fail secure - Locked when power is removed
• Solid Bolt: Polishing housing, 2000Kg/4409lb Holding Force
• Signal Output: Lock signal (NO/NC/COM)
• Suitable For: Wooden Door, Glass Door, Metal Door, Fireproof Door
• Tips: Default come with single side cylinder with Thumb

Advantage:
Low Temperature, safe & Durable
Low Power,Environmental Protection
Special photoelectricity control, three steps current application
MOV Provides Reverse Current Protection
Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt
Double protection for loading current
Auto-relock if no Action within 5 secs
Certificate: CE & MA
Photoelectricity Control, Low Temperature
A: The Low Current is Changed immediately
B: When door frame doesn't coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C: The Photoelectricity Control Technology, prevent the mechanical defect
Specifications:
Fail Secure: Locked when power is removed
Lock Body: 260Lx30Wx48H(mm) / 10.24Lx1.18Wx1.89H(in)
Magnetic Plate: 100Lx25Wx2.5H(mm) / 3.94Lx0.98Wx0.1H(in)
Bolt: 16mm/0.63in DIA, stainless steel 16mm/0.63in throw
Voltage: DC12V
Start Current: 1200mA
Standby Current: 200mA
Suitable For: Wooden Door, Glass Door, Metal Door, Fireproof Door
LED: Light on indicates locked, light off indicates unlocked
Autolock Time Delay: 0/3/6/9sec
Operating temp: -10~55(14~131)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Signal Output: Lock signal(NO/NC/COM)
Material: 304 stainless steel, wire draw finishing
Induction Distance: Within 8mm/0.31in
Weight: 1.6kg / 3.52lb
Package:
1 x Electric Lock
1 x User manual
1 x Screws and Installation Kit
Tips: Default come with single side cylinder with Thumb
